China Wholesale PURUI pelletizing machine Quotes – TSSK series is Co-rotating double/Twin screw extruder – Purui

Short Description:


Product Detail

plastic recycling and granulating machine

Product Tags

Related Video

Feedback (2)

Our business has been focusing on brand strategy. Customers' pleasure is our best advertising. We also offer OEM company for Double Screw Plastic Extruder For Sale, Plastic Pelletizing Machine Manufacturers, Plastic Sheet Extruder Line, We maintain timely delivery schedules, impressive designs, high-quality and transparency for our buyers. Our moto is to deliver top quality solutions within stipulated time.
China Wholesale PURUI pelletizing machine Quotes – TSSK series is Co-rotating double/Twin screw extruder – Purui Detail:

TSSK series is Co-rotating double/Twin screw extruder

IMG_4326

More powerful gearbox, more precise screw elements endow TSSK more flexible processing range and wider operation window. We also provide individual solution according to customized requirements. Variety of modular screw elements, barrels, melt filtration and pelletizing system will get the most out of your investment.

Technical characteristics:

High torque: Carrying capacity factor of gearbox>=13
High precision:Run-out accuracy of the output-shaft keep constant,which guarantee small screw clearance
High service life: Designed service life of gearbox is 72000hrs
High speed: Max. 1800rpm
High quality: small clearance reduce material leakage and back-flow, residence time in barrels and excessive shear.
High efficiency: Output is 2-3 times larger than the same size extruder from other domestic manufacturers.
Convenient operation: PLC touch screen with clear operation interface, simple and convenient system operation, integrate the auxiliary control on interface.
Diversity of processing materials: wide speed range can meet kinds of producing different materials, including Crystalline materials, organic dye products, pull film products.

DSC02965

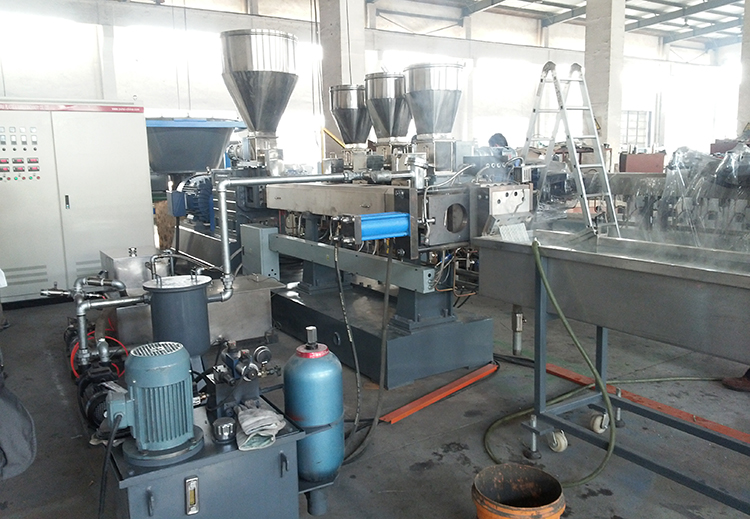

20140116_145222

Application:

Filling modification: caco3/talcum powder/Tio2/other inorganic filler
filling modification are used in injection, blow-moulding, film(One layer or Multiple layer), sheet and tapes applications
Reinforce modification: long or short glass fiber/carbon fiber
Preparation of master batch: carbon black master-batch/color master batch/other special functions master batch
Three types of Color masterbatch :
1)Mono color masterbatch or SPC (single pigment concentrate): polymer compounding with one single pigment and mostly without the wax and additive
2) Tailor-Made masterbatch or Custom coloring: mixing different Mono color masterbatch pellets to get the color the customer wants
3) Customized masterbatch: mix polymer and several pigment and additives
Blending modification: thermoplastic material/Elastomer
Cable material: PVC cable material/Zero halogen cable material/special cable material

Technical parameter:

model TSSK-20 TSSK-30 TSSK-35 TSSK-50 TSSK-65 TSSK-72 TSSK-92
Screw diameter(mm )

21.7

30

35.6

50.5

62.4

71.2

91

Rotary speed(RPM)

600

400

400/600

400/500

400/500

400/500

400/500

Motor power(Kw)

4

11

11/45

37/45

55/75

90/110

220/250

L/D

32-40

28-48

32-48

32-48

32-48

32-48

32-40

Capacity (Kg/H)

2-10

5-30

10-80

20-150

100-300

300-600

600-1000


Product detail pictures:

China Wholesale PURUI pelletizing machine Quotes –  TSSK series is Co-rotating double/Twin screw extruder – Purui detail pictures

China Wholesale PURUI pelletizing machine Quotes –  TSSK series is Co-rotating double/Twin screw extruder – Purui detail pictures


Related Product Guide:

We attempt for excellence, company the customers", hopes to be the top cooperation team and dominator company for personnel, suppliers and customers, realizes price share and continual marketing for China Wholesale PURUI pelletizing machine Quotes – TSSK series is Co-rotating double/Twin screw extruder – Purui , The product will supply to all over the world, such as: Plymouth, Berlin, Sweden, So far our products have been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We have 13years professional sales and purchase in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principal of Honesty in business, priority in service and will do our best to offer our customers with high quality products and excellent service.

A plastic recycling and granulating machine is a type of equipment used to recycle plastic waste into granules or pellets that can be reused in manufacturing new plastic products. The machine typically works by shredding or grinding the plastic waste into small pieces, then melting and extruding it through a die to form pellets or granules.

There are different types of plastic recycling and granulating machines available, including single-screw and twin-screw extruders. Some machines also include additional features such as screens to remove impurities from the plastic waste or cooling systems to ensure the pellets are solidified properly. PET bottle washing machine, PP woven bags washing line

Plastic recycling and granulating machines are commonly used in industries that generate large amounts of plastic waste, such as packaging, automotive, and construction. By recycling plastic waste, these machines help reduce the environmental impact of plastic disposal and conserve resources by reusing materials that would otherwise be discarded.

  • Speaking of this cooperation with the Chinese manufacturer, I just want to say"well dodne", we are very satisfied.
    5 Stars By Barbara from panama - 2018.09.21 11:44
    After the signing of the contract, we received satisfactory goods in a short term, this is a commendable manufacturer.
    5 Stars By Jeff Wolfe from New Zealand - 2017.02.14 13:19
