Plastic Crusher for PP PE films and HDPE bottles
Plastic crusher for soft plastics and rigid plastics, such as PP PE films and HDPE bottles
Application:
This type of plastic crusher can be used in the reduction of the size of the HDPE,LDPE,LLDPE cast films and blowing films. Also the crusher can be used in HDPE bottles, PP ABS home appliance parts with different blades types. The end plastics sizes can be customized as per customer requirement.
The crushers are widely used in the our plastic films washing line for post-industril films and post-consumer films and bags and plastic bottles washing line. They are got good feedback from our customers all over the world.
The structure of the plastic crusher contains:
Upper hopper, base, crushing house, shaft rotor, motors, screens etc.
Features of the plastic crusher:
- Special designed shaft for soft plastic and rigid plastics. For the soft materials, the shaft is flat type and suite for the wet crushing, and for the rigid plastics it is the claw type. Their design will largely improve the performance of each materials processing.
- Main shaft is strong and anti-wear.
- Crushing house is strong and thick wall.
- Blades are anti-wear and long service time
- Screen can be special design. For the rigid plastics we can make 14mm screen, while for the soft plastics we can use 40-120mm screen size.
- Hopper open can be hydraulic type or electric type.
Models:
|
Model |
BPSJ 300 |
BPSJ 500 |
BPSJ1000 |
BPSJ1200 |
|
Capacity(KG/h) |
300 |
500 |
800 |
1000 |
|
Power(KW) |
45 |
55 |
75 |
90/110 |
|
Crusher house width(mm) |
1000 |
1000 |
1000 |
1200 |
Below is some pictures for your reference:

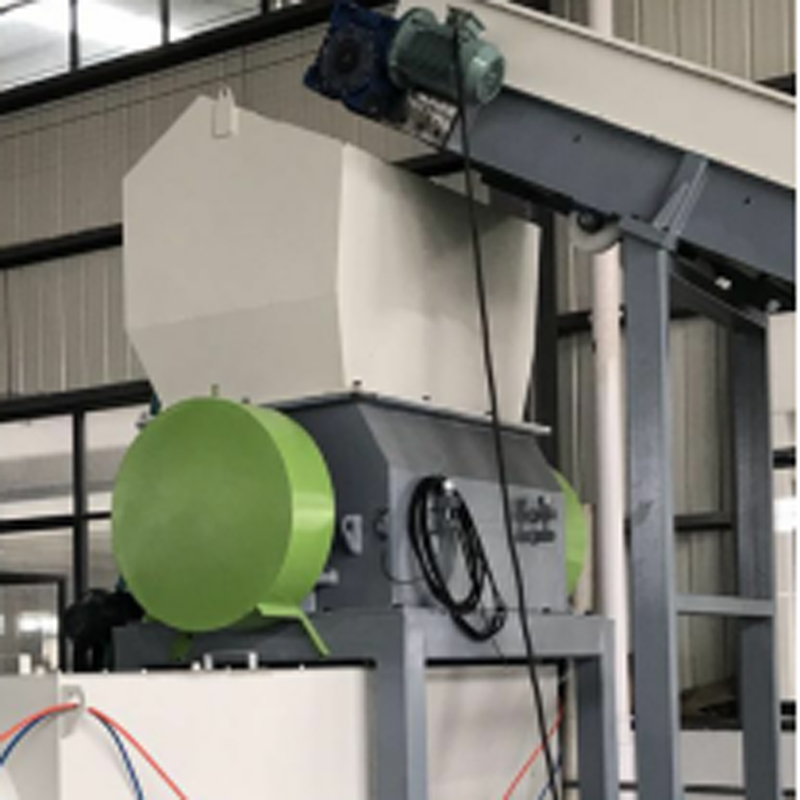

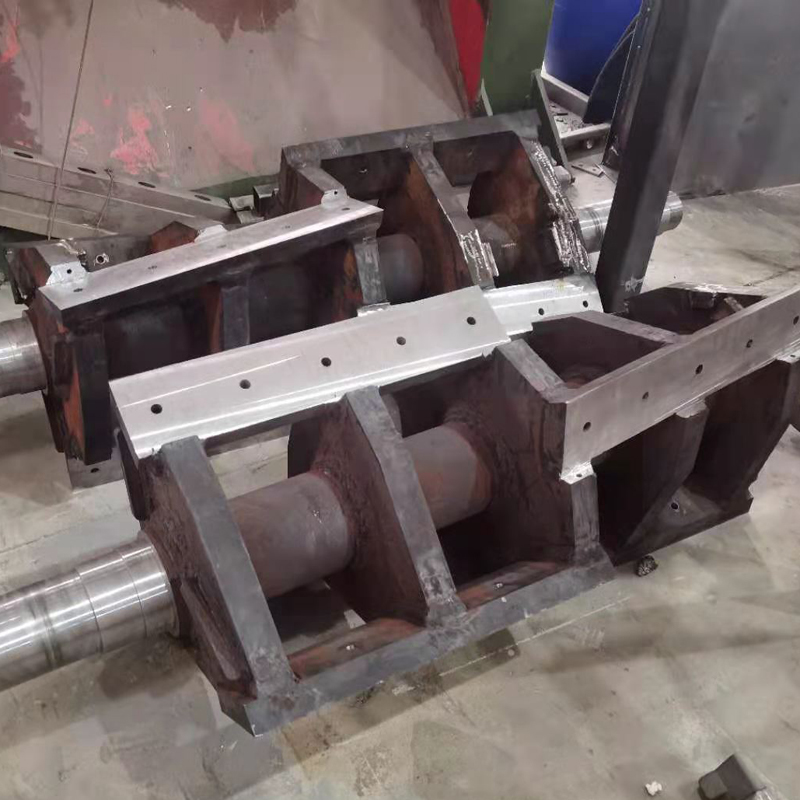

Soft plastic crusher for HDPE,LLDPE,LDPE films and fibers

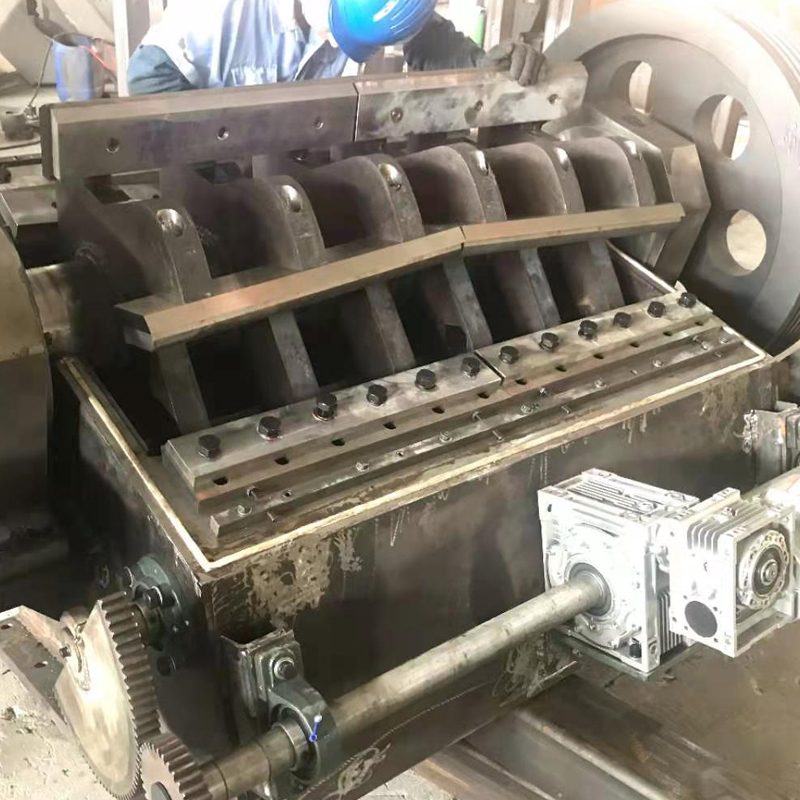

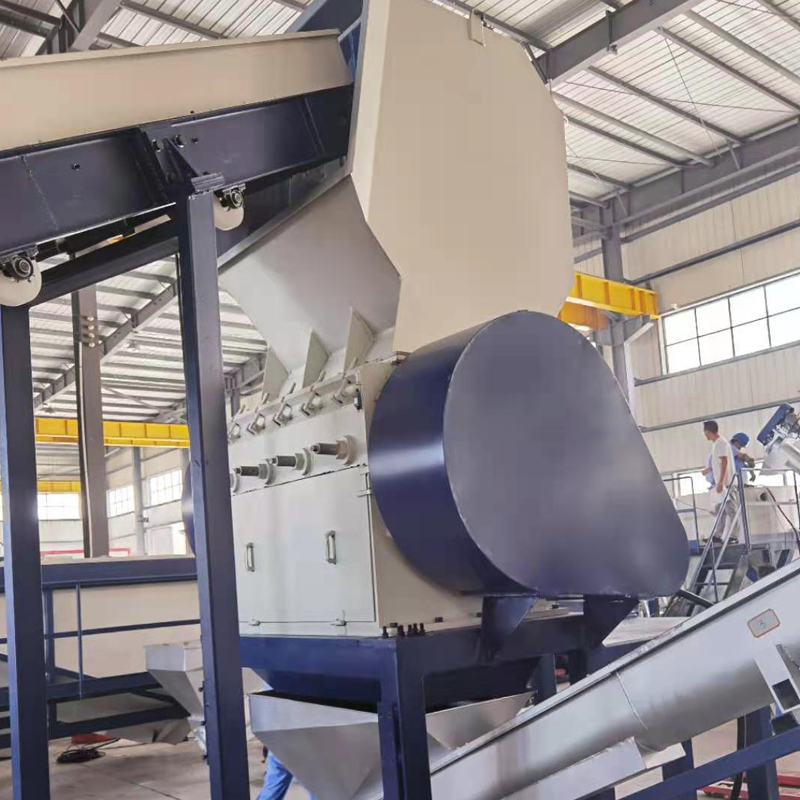

Rigid plastic crusher for HDPE bottles and home appliance
Any enquiry, please feel free to contact us.
A plastic recycling and granulating machine is a type of equipment used to recycle plastic waste into granules or pellets that can be reused in manufacturing new plastic products. The machine typically works by shredding or grinding the plastic waste into small pieces, then melting and extruding it through a die to form pellets or granules.
There are different types of plastic recycling and granulating machines available, including single-screw and twin-screw extruders. Some machines also include additional features such as screens to remove impurities from the plastic waste or cooling systems to ensure the pellets are solidified properly. PET bottle washing machine, PP woven bags washing line
Plastic recycling and granulating machines are commonly used in industries that generate large amounts of plastic waste, such as packaging, automotive, and construction. By recycling plastic waste, these machines help reduce the environmental impact of plastic disposal and conserve resources by reusing materials that would otherwise be discarded.
