Preshredder for the PE agriculture films agriculture irrigating tape and PP woven bags

Short Description:

Preshredder for PE agriculture films

The function of the preshredder is to preshred the agriculture films like LDPE films etc. Even though it is with 70% sand or dust impurity for the mulch films, the preshredder could process without any problem. The greenhouse films can be also processed by the preshredder.

Picture for the mulch and greenhouse films

It features in the large capacity and stable working. The capacity can reach 1500-2000kg/h and 2000-3000kg/h. Below is the technical table for your reference.


  • Capacity: 500-3000kg/h
  • Processing material: baled agriculture films and agriculture irrigating tapes PP woven bags
  • Certificate: CE
  • Electricity parts: could customized to conform with the UL requirement
  • Function: To pre shred the raw films and materials
  • Product Detail

    plastic recycling and granulating machine

    Product Tags

    Preshredder for PE agriculture films irrigation tape and PP woven bags

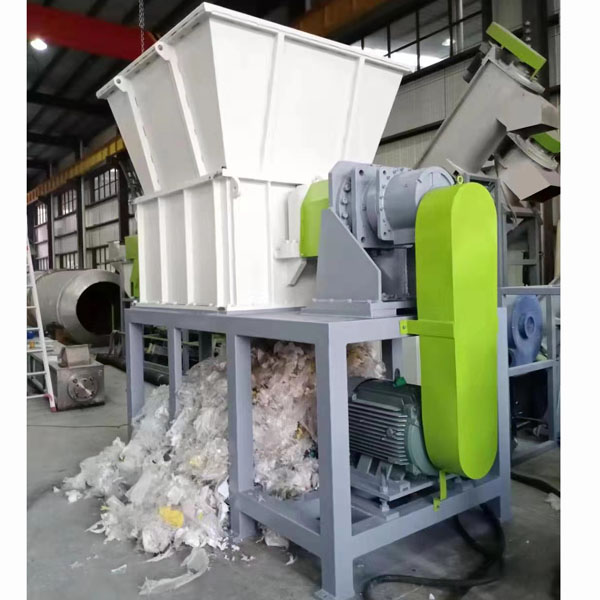

    Preshredder for agriculture films

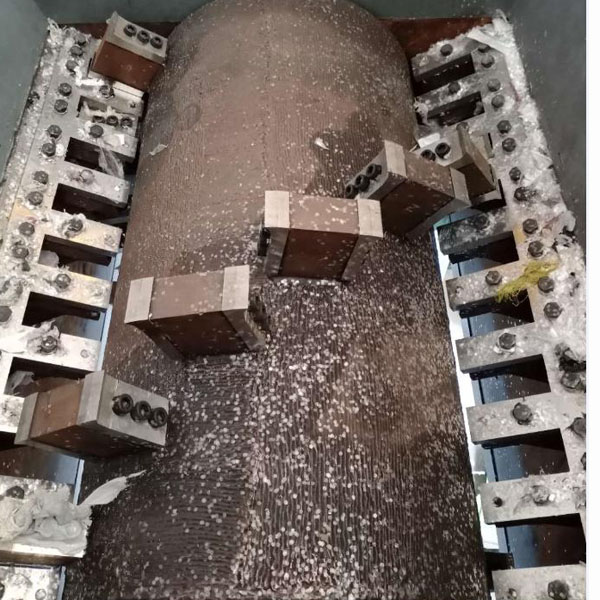

    Preshredder shaft

    The function of the preshredder is to preshred the agriculture films like LDPE films etc. Even though the agriculture films are with 30-70% sand or dust, the preshredder could process without any problem. The greenhouse films can be also processed by the preshredder.



    Picture for the ariculture mulchs and greenhouse films

    Greenhouse films agriculture films

    Mulch film agriculture films

    The plastic washing line features in the large capacity and stable working. The capacity can reach 1500-2000kg/h and 2000-3000kg/h. Below is the technical table for your reference.



    Model YPSJ1000 YPSJ1500 Remarks
    Capacity 1500-2000kg/h 2000-3000kg/h
    Rotary blades 36 pieces  28 pieces Will change according to material
    Fixed blades Long 18 pieces,short 4 pieces Long 14 pieces,short 4 pieces Will change according to material
    Motor power 75-90kW 90-110kW
    Shredder house size 3100*1800*2120mm 4100*1900*3120mm
    Main shaft rotation speed 10-20 10-20
    Weight 5500kgs 7500kgs



    The principle of the preshredder machine is with the working of the rotary blades mounted on the shaft and fixed blades to shred the raw materials PE films into pieces. The final films scraps will be around 100-200mm. With large feeding mouth and the high torque shaft rotation, the processing capacity could reach 2000kg - 300kg/h. It will largely reduce the dowm stream processing strength. Before feeding the baled or loose films, should check if there is big metals and big stones get into the shredder. To guarantee the shredder work well, we need get rid of the big metals and big stones. After shredder, the raw material could be transfered to the rotation drum screen to further remove the small stones and dust and sand. It will largely reduce the sand and stones to relief the down stream work load.



    The preshredder perform well in our plastic ariculture films washing line in Yunnan province, China and Japan factory.



    Below is the youtube link for the running videos:

    We has been in the plastic recycling industry for more than 16 years with much experience and advanced technology. We will continue to offer the best service and products for our customers all over the world.

    For any enquiry, please contact us freely.

    Contact person:Aileen.he@puruien.com

    Email: aileen.he@puruien.com

    Mobile:0086 15602292676(whatsapp and wechat)
